        RVVP RVVP1多芯屏蔽電纜

        RVVP、RVVP1

        多芯屏蔽電纜

        Multi-Conductor Shielded Cable

        標準 Standard: JB 8734.5-1998

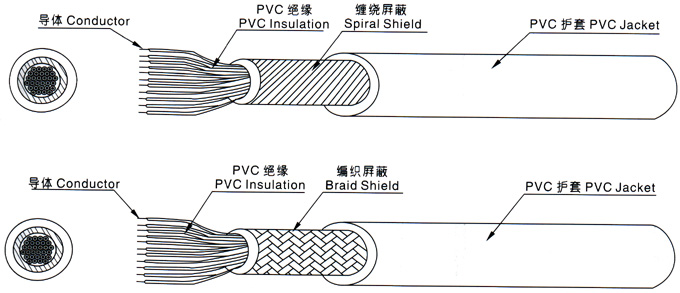

        ■ 構造 CONSTITUTION：

        ■ 產品說明
        ●

        額定電壓：300/300V， 額定溫度：70℃

        ●

        導體使用絞線0.08-1.5mm2裸銅絲

        ●

        PVC絕緣

        ●

        鍍錫或裸軟銅線纏繞或編織屏蔽

        ●

        PVC護套

        ●

        可通過GB 12666.2垂直耐燃試驗

        ● 使用標準厚度、易剝、易裁
        ● 具有抗酸堿、耐油、防潮、防霉、環保等特性
        PRODUCT DESCRIPTION
        ●

        Rated voltage: 00/300V，Rated temperature:70℃

        ●

        Stranded, bare copper conductor,0.08-1.5mm2

        ●

        PVC insulation

        ●

        Tinned or bare copper wire sporal or braid shield

        ●

        PVC jacket

        ●

        Passes GB 12666.2 vertical flame test

        ● Uniform insulation thickness of wire to ensure easy stripping and cutting
        ● Resistant to acid,alkail,oil,moisture and fungi,conform RoHS
        ■ 應用

        適用于電器、儀表和電子設備及自動化裝置用連線

        APPLICATION

        For internal wiring of vehicles meters circuits and electrical equipment in high temperature condition

        RVVP、RVVP1 70℃ 300/300V

        型號 Style

        異體

        Conductor

        		芯數Cores

        絕緣

        Insulation

        		屏蔽Shield 護套 Jacket

        最大異體電阻 Max Resis- tance at 20℃

        		最小絕緣電阻 Max Insul- ation Resis- tance at 70℃

        耐電壓

        Dielec- tric Strength AC 5 min

        		標準長度Standard Length

        標準截面

        Nom. Area

        		線數/線徑 直徑 Dia

        標稱厚度 Nom. Thick

        標稱外徑 Nom.

        Dia.

        		纏繞/編織 Spiral/ Braid

        標稱厚度 Nom.

        Thick.

        標稱外徑 Nom.

        Dia.

        		最大外徑 Max. Dia
        mm2 No./mm mm No. mm mm mm mm mm mm Ω/Km MΩ.Km V (M)
        RVVP1 0.08 7/0.12 0.37 1 0.4 1.17 0.10 0.4 2.20 2.5 247.0 0.018 1500 500
        2 0.10 3.40 4.2
        0.12 7/0.15 0.46 1 0.4 1.26 0.10 0.4 2.30 2.6 158.0 0.016 1500
        2 0.10 0.6 4.00 4.9 300
        3 0.10 4.10 5.1
        4 0.15 4.60 5.8
        5 0.15 5.00 6.2
        0.2 12/0.15 060 1 0.4 1.40 0.10 0.4 2.40 2.8 92.3 0.016 1500 500
        2 0.10 0.6 4.20 5.3 300
        3 0.15 4.60 5.8
        4 0.15 4.90 6.2
        5 0.15 5.30 6.7
        0.3 16/0.15 0.69 1 0.5 1.69 0.10 0.4 2.70 3.1 69.2 0.014 1500 500
        2 0.15 0.6 4.90 6.2 300
        3 0.15 5.20 6.5
        4 0.15 5.60 7.0 200
        5 0.15 6.10 7.6
        RVVP 0.08 7/0.12 0.37 1 0.4 1.17 16/3/0.10 0.4 2.40 2.9 247.0 0.018 1500 500
        2 16/4/0.10 3.60 4.2 300
        16/4/0.10 2.4×3.6 2.9×4.2
        0.12 7/0.15 0.46 1 0.4 1.26 16/3/0.10 0.6 2.50 3.0 158.0 0.016 1500 500
        2 16/4/0.10 4.20 4.9 300
        16/4/0.10 2.9×4.2 3.4×4.9
        3 16/4/0.10 4.40 5.1
        4 16/4/0.15 4.90 5.8
        5 16/4/0.15 5.30 6.2
        6-7 16/4/0.15 5.60 6.6 200
        10 16/5/0.15 6.90 8.1
        12 16/6/0.15 7.10 8.3
        0.2 12/0.15 0.60 1 0.4 1.40 16/4/0.10 0.4 2.60 3.2 92.3 0.013 1500 500
        2 16/4/0.10 0.6 4.40 5.3 300
        16/4/0.10 3.0×4.4 3.6×5.3
        3 16/4/0.15 4.90 5.8
        4 16/4/0.15 5.20 6.2
        5 16/4/0.15 5.60 6.7 200
        6-7 16/4/0.15 6.00 7.2
        10 16/4/0.15 0.8 7.80 9.3
        12 16/4/0.15 8.10 9.6 150
