PVC Insulated Flat Ribbon Wire
|
Standare:UL 758, 1581 CSA C22.2 No.210.2
|
|
|
|
|

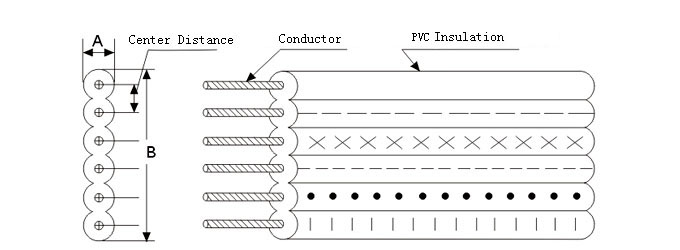

■ CONSTITUTION：
|
|
|
|
|
|
|
|
|
|
Cores
|
2C
|
3C
|
4C
|
5C
|
6C
|
7C
|
8C
|
9C
|
10C
|
11C
|
12C
|
|
Ident Mark
|
-
|
×
|
-
|
●
|
∣
|
+
|
-
|
×-
|
-∣
|
+-
|
×-
|
|
|
|
|
|
|
PRODUCT DESCRIPTION
|
|
|
|
●
|
Rated voltage:300V, Rated temperature:80℃
|
|
|
●
|
Stranded,tinned or bare copper conductor,32-20AWG
|
|
|
●
|
Color-coded PVC insulation
|
|
|
●
|
Passes UL VW-1 & CSA FT1 vertical flame test
|
|
|
●
|
Uniform insulation thickness of wire to ensure easy stripping and cutting
|
|
|
●
|
Resistant to acids, alkalis, oils, moisture and fungi，conforming RoHS
|
|
|
|
|
|
|
|
|
|
|
|
APPLICATION
|
|
|
|
For general purpose internal wiring of electronic and electrical equipment, where exposed to oil at a temperature not exceeding 60℃or80℃
|
|
|
|
|
|
|
|
UL2468 80℃ 300V
|
|
Conductor Type
|
Conductor
|
Cores
|
Center
Distance
|
Insulation
|
Max Resistance at 20℃
|
Min Insulation Resistance at 20℃
|
Dielectric Strength AC 1 min
|
Standard
Length
|
|
Spec
|
|
Dia.
|
Nom. Thick.
|
Nom. Dia.
|
|
AWG
|
No./mm
|
mm
|
No.
|
mm
|
mm
|
mm
|
Ω/km
|
MΩ.Km
|
V
|
Ft(M)
|
|
Stranded Conductor
|
28
|
7/0.127
|
0.38
|
2
|
1.28
|
0.38
|
1.20×2.48
|
223.75
|
15
|
2000
|
1640(500)
|
|
3
|
1.20×3.76
|
|
4
|
1.20×5.04
|
|
5
|
1.20×6.32
|
984(300)
|
|
6
|
1.20×7.60
|
|
7
|
1.20×8.88
|
|
8
|
1.20×10.16
|
656(200)
|
|
9
|
1.20×11.44
|
|
10
|
1.20×12.72
|
|
11
|
1.20×14.00
|
|
12
|
1.20×15.28
|
|
26
|
7/0.16
|
0.48
|
2
|
1.46
|
0.38
|
1.38×2.48
|
139.73
|
15
|
2000
|
1640(500)
|
|
3
|
1.38×4.30
|
984(300)
|
|
4
|
1.38×5.76
|
|
5
|
1.38×7.22
|
|
6
|
1.38×8.68
|
656(200)
|
|
7
|
1.38×10.14
|
|
8
|
1.38×11.6
|
|
9
|
1.38×13.06
|
|
10
|
1.38×14.52
|
|
11
|
1.38×15.98
|
|
12
|
1.38×17.44
|
492(150)
|
|
24
|
11/0.16
|
0.61
|
2
|
1.62
|
0.38
|
1.52×3.14
|
93.3
|
15
|
2000
|
1640(500)
|
|
3
|
1.52×4.76
|
984(300)
|
|
4
|
1.52×6.38
|
|
5
|
1.52×8.00
|
656(200)
|
|
6
|
1.52×9.62
|
|
7
|
1.52×11.24
|
|
8
|
1.52×12.86
|
|
9
|
1.52×14.48
|
|
10
|
1.52×16.10
|
|
11
|
1.52×17.72
|
492(150)
|
|
12
|
1.52×19.34
|
328(100)
|
|
22
|
17/0.16
|
0.76
|
2
|
1.72
|
0.38
|
1.62×3.34
|
55.0
|
15
|
2000
|
1640(500)
|
|
3
|
1.62×5.06
|
984(300)
|
|
4
|
1.62×6.78
|
|
5
|
1.62×8.50
|
|
6
|
1.62×10.22
|
328(100)
|
|
7
|
1.62×11.94
|
|
8
|
1.62×13.66
|
|
9
|
1.62×15.38
|
|
10
|
1.62×17.10
|
|
11
|
1.62×18.82
|
|
12
|
1.62×20.54
|
|
20
|
26/0.16
|
0.96
|
2
|
1.90
|
0.38
|
1.80×3.70
|
34.6
|
15
|
2000
|
1640(500)
|
|
3
|
1.80×5.60
|
984 (300)
|
|
4
|
1.80×7.50
|
|
5
|
1.80×9.40
|
|
6
|
1.80×11.30
|
656(200)
|
|
7
|
1.80×13.20
|
|
8
|
1.80×15.10
|
|
|
