AVS AVSS Thin-Wall Wire for Automobile

AVS、AVSS

汽車用薄壁型電線

Thin-Wall Wire for Automobile

標準 Standard: JASD D 611--94

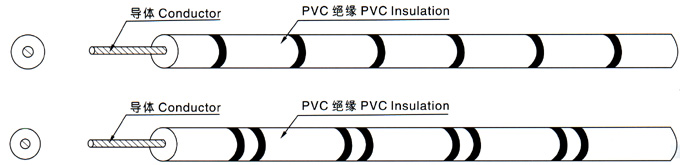

■ 構造 CONSTITUTION：

■ 產品說明

PRODUCT DESCRIPTION

●	Rated voltage: not specified，Rated temperature:105℃
●	Stranded, bare copper conductor
●	Sole PVC insulation for automobile
●	Passes JASO D 611-94 flame test
●	Uniform insulation thickness of wire to ensure easy stripping and cutting
●	Resistant to acid, alkali, heat, cold, abrasions and oil，conforming RoHS

■ 應用

適用于車輛高溫區電器及儀表線路用連線

APPLICATION

For internal wiring of vehicles meters circuits and electrical equipment in high temperature condition

AVS、AVSS
型號 Style	導體 Conductor			絕緣 Insulation		成品外徑 Droduct Dia.		20℃最大異體電阻 Max Resistance at 20℃	70℃最小絕緣電阻Max Insulation Resis- tance at 70℃	耐電壓 Dielectric Strength AC 30 min	標準長度Standard Length
	標稱截面 Nom. Area	線數/線徑	直徑 Dia	標稱厚度 Nom. Thick	最小厚度 Min. Thick	標稱外徑 Nom. Dia.	最大外徑 Max. Dia	20℃最大異體電阻 Max Resistance at 20℃	70℃最小絕緣電阻Max Insulation Resis- tance at 70℃	耐電壓 Dielectric Strength AC 30 min	標準長度Standard Length
	mm²	No./mm	mm	mm	mm	mm	mm	Ω/Km	Ω.cm	V	(M)
AVS	0.3	7/0.26	0.8	0.5	0.32	1.8	1.9	50.2	10⁹	1000	500
	0.5	7/0.32	1.0	0.5	0.32	2.0	2.1	32.7
	0.85	16/0.26	1.2	0.5	0.32	2.2	2.3	22.0
	0.85	11/0.32	1.2	0.5	0.32	2.2	2.3	20.8
	1.25	16/0.32	1.5	0.5	0.32	2.5	2.6	14.3
	2.0	26/0.32	1.9	0.5	0.32	2.9	3.1	8.81			300
	3.0	41/0.32	2.4	0.6	0.40	3.6	3.8	5.59			200
	5.0	65/0.32	3.0	0.7	0.48	4.4	4.6	3.52			200
	0.3f	15/0.18	0.8	0.5	0.32	1.8	1.9	48.9			500
	0.5f	20/0.18	1.0	0.5	0.32	2.0	2.1	36.7
	0.75f	30/0.18	1.2	0.5	0.32	2.2	2.3	24.4
	1.25f	50/0.18	1.5	0.5	0.32	2.5	2.6	14.7
	2.0f	37/0.26	1.9	0.5	0.32	2.9	3.1	9.50			300
AVSS	0.3	7/0.26	0.8	0.3	0.24	1.4	1.5	50.2	10⁹	1000	500
	0.5	7/0.32	1.0	0.3	0.24	1.6	1.7	32.7
	0.85	19/0.24	1.2	0.3	0.24	1.8	1.9	21.7
	0.85	7/0.40	1.1	0.3	0.24	1.8	1.9	20.8
	1.25	19/0.29	1.5	0.3	0.24	2.1	2.2	14.9
	2.0	19/0.37	1.9	0.4	0.32	2.7	2.8	9.00			300
	0.3f	19/0.16	0.8	0.3	0.24	1.4	1.5	48.8			500
	0.5f	19/0.19	1.0	03	0.24	1.6	1.7	34.6
	0.75f	19/0.23	1.2	0.3	0.24	1.8	1.9	23.6
	1.25f	37/0.21	1.5	0.3	0.24	2.1	2.2	14.6
	2.0f	37/0.26	1.8	0.4	0.32	2.6	2.7	9.50			300
