H05VV-F、H05VVH2-F

聚氯乙烯護套電線

Light-duty PVC Insulated Flexible Cords

標準 Standard: DIN VDE0281-5(HD 21.5S3)

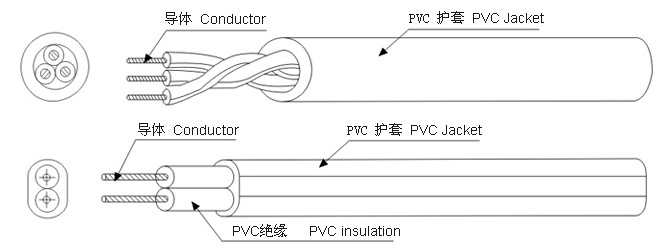

■ 構造 CONSTITUTION：

■ 產品說明

PRODUCT DESCRIPTION

●	Rated voltage: 300/500V,Rated temperature:70℃
●	Stranded Tinned or bare copper conductor, 0.75-4.0mm²
●	PVC Insulation
●	PVC Jacket
●	Passes DIN VDE HD405.1 Vertical flame test
●	Uniform insulation thickness of wire to ensure easy stripping and cutting
●	Resistant to PS and ABS,Conforming RoHS

■ 應用

適用于一般電子、電器設備電源連線

APPLICATION

For general purpose internal wiring of electronic and eclectrical equipment

H05VV-F H05VVFH2-F 70℃ 300/500V
導體型號 Conductor Type	導體 Conductor			芯數 Cores	絕緣 Insulation		護套 Jacket			20℃最大導體電阻 Max Resistance at 20℃	70℃最小絕緣電阻 Min Insulation Resistance,	耐電壓 Dielectric Strength AC 1 min	標準長度 Standard Length
	標稱截面 Nom. Area	線數/ 線徑	直徑 Dia		標稱厚度 Nom. Thick.	標稱外徑 Nom. Dia.	標稱厚度 Nom. Thick.	標稱外徑 Nom. Dia.	最大外徑 MAX. Dia.
	mm²	No./mm	mm	No.	mm	mm	mm	mm	mm	Ω/Km	MΩ.Km	V	M
絞合導體 Stranded Conductor	0.75	24/0.20 42/0.15	1.13	2	0.6	2.33	0.8	4.0×6.4	4.5×7.2	26.0	0.011	2000	200
				2				6.4	7.2
				3				6.8	7.6
	1.0	32/0.20	1.3	2	0.6	2.5		4.0×6.4	4.7×7.5	19.5	0.010
				2				6.6	7.5
				3				7.0	8.0
