BVVB PVC Insulated and Jacketed Cable

BVVB

聚氯乙烯絕緣護套電纜

PVC Insulated and Jacketed Cable

標準 Standard: JB 8734.2--98

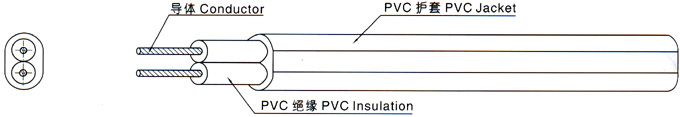

■ 構造 CONSTITUTION：

■ 產品說明

PRODUCT DESCRIPTION

●	Rated voltage: 300/500V，Rated temperature:70℃
●	Stranded, bare copper conductor, 0.75-2.5mm²
●	PVC insulation
●	PVC jacket
●	Passes GB 18380.1 vertical flame test

■ 應用

適用于固定布線用電源線

APPLICATION

Power supply wires for fixed wiring

BVVB 70℃ 300/500V
異體 Conductor			芯數Cores	絕緣 Insulation		護套 Jacket			20℃ 最大異體電阻Max Resis- tance at 20℃	20℃ 最小絕緣電阻Max Insulation Resis- tance at 20℃	耐電壓 Dielec- tric Strength AC 5 min	標準長度Standard Length
標準截面 Nom. Area	線數/線徑	直徑 Dia		標稱厚度 Nom. Thick	標稱外徑 Nom. Dia.	標稱厚度 Nom. Thick.	標稱外徑 Nom. Dia.	最大外徑 Max. Dia
mm²	No./mm	mm	No.	mm	mm	mm	mm	mm	Ω/Km	MΩ.Km	V	(M)
0.75	1/0.97	0.97	2	0.6	2.17	0.9	4.0×6.2	4.6×7.1	24.5	0.012	2000	100
			3				4.0×8.4	4.6×9.6
1.0	1/1.13	1.13	2	0.6	2.33	0.9	4.2×6.5	4.8×7.4	18.1	0.011
			3				4.2×8.8	4.8×10.1
1.5	1/1.38	1.38	2	0.7	2.78	0.9	4.6×7.4	5.3×8.5	12.1	0.011
			3				4.6×10.2	5.3×11.7
2.5	1/1.78	1.78	2	0.8	3.38	0.9	5.2×8.6	6.2×10.1	7.41	0.010
			3				5.2×12.0	6.2×14.0
