AVVR PVC Insulated and Jacketed Flexible Cords

AVVR

聚氯乙烯絕緣聚氯乙烯護套軟線

PVC Insulated and Jacketed Flexible Cords

標準 Standard: JB 8734.4--98

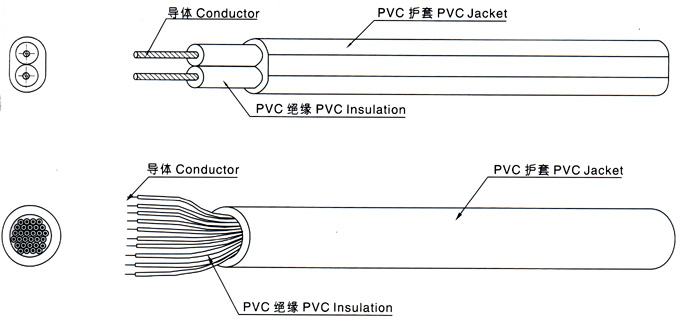

■ 構造 CONSTITUTION：

■ 產品說明

PRODUCT DESCRIPTION

●	Rated voltage: 300/300V，Rated temperature:70℃
●	Stranded, bare copper conductor,0.08-0.4mm²
●	PVC insulation
●	PVC jacket
●	Passes GB 18380.1 vertical flame test

■ 應用

適用于電器、儀表和電子設備及自動化裝置用安裝線

APPLICATION

For iwiring of electrical apparatus, meters, electronic equipments and automatic devices

AVVR-70℃ 300/300V
導體 Conductor			芯數Cores	絕緣 Insulation		護套 Jacket			20℃最大導體電阻Max Resis- tance at 20℃	70℃最小絕緣電阻Max Resis- tance at 70℃	耐電壓 Dielec- tric Strength AC 5 min	標準長度Standard Length
標稱截面 Nom. Area	線數/ 線徑	直徑 Dia		標稱厚度 Nom. Thick	標稱外徑 Nom. Dia.	標稱厚度 Nom. Thick.	標稱外徑 Nom. Dia.	最大外徑 Max. Dia
mm²	No./mm	mm	No.	mm	mm	mm	mm	mm	Ω/Km	MΩ.Km	V	(M)
0.08	7/0.12	0.37	2	0.4	1.17	0.6	3.60	4.1	247	0.018	1500	300
							2.40×3.60	2.7×4.1
0.12	7/0.15	0.46	2	0.4	1.3	0.6	3.80	4.3	158	0.016	1500
							2.50×3.80	2.8×4.3
			3				4.00	4.5
			4				4.30	4.9
			5				4.70	5.3
			6-7				5.00	5.7				200
			8				5.40	6.0
			9				5.90	6.5
			10				6.30	7.2
			11-12				6.50	7.3
0.2	12/0.15	0.60	2	0.4	1.40	0.6	4.00	4.7	92.3	0.014	1500	300
							2.60×4.00	3.0×4.7
			3				4.30	4.9
			4				4.60	5.4
			5				5.00	5.8				200
			6-7				5.40	6.3
			8				5.90	6.7
			9				6.40	7.2
			10				6.80	8.0
			11-12				7.10	8.2
0.3	16/0.15	0.69	2	0.5	1.69	0.6	4.60	5.3	69.2	0.014	1500	300
							2.90×4.60	3.4×5.3
			3				4.90	5.7
			4				5.40	6.2				200
			5				5.90	6.7
			6-7				6.30	7.3
			8			0.7	7.10	8.0
			9				7.70	8.6
			10			0.8	8.40	9.7				150
			11-12				8.70	10.1
0.4	23/0.15	0.83	2	0.5	1.83	0.6	4.90	5.7	48.2	0.013	1500	300
							3.10×4.90	3.5×5.7
			5				6.30	7.2				200
			6-7				6.80	7.8
			10				9.00	10.4				150
			11-12				9.30	10.8
