AVRS PVC insulated Stranded Wire

AVRS

聚氯乙烯絕緣絞型電線

PVC insulated Stranded Wire

標準 Standard: JB 8734.4--98

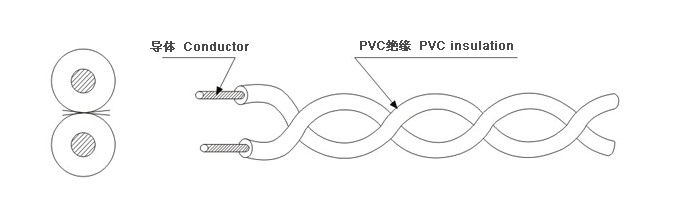

■ 構造 CONSTITUTION：

■ 產品說明
●

額定電壓：300/300V， 額定溫度：70℃

●

導體使用絞線0.12-0.4mm2裸銅絲

●

PVC絕緣

●

可通過GB 18380.1垂直耐燃試驗

●

用標準厚度、易剝、易裁

● 具有抗酸堿、耐油、防潮、防霉、環保等特性
PRODUCT DESCRIPTION
●

Rated voltage: 300/300V，Rated temperature:70℃

●

Stranded, bare copper conductor, 0.12-0.4mm2

●

PVC insulation

●

Passes GB 18380.1 vertical flame test

●

Uniform insulation thickness of wire to wire to ensure easy stripping and cutting

●

Resistant to acids, alkalis, oils, moisture and fungi,conforming RoHS
■ 應用

適用于電器、儀表和電子設備及自動化裝置用安裝線

APPLICATION

For iwiring of electrical apparatus, meters, electronic equipments and automatic devices

AVRS 70℃  300/300V

導體型號 Conductor
Type

導體

Conductor

絕緣

Insulation

20℃最大導體

電阻

Max Resistance at 20℃

70℃最小絕緣
電阻

Min Insulation Resistance
at 70℃

耐電壓

Dielectric Strength
AC 5 min

標準

長度
Standard Length

標稱截面

Nom. Area

線數/
線徑

直徑

Dia.

標稱

厚度

Nom. Thick.

標稱

外徑

Nom.Dia.

最大外徑 Max. Dia
mm2 No./mm mm mm mm mm Ω/km MΩ.Km V M
絞合導體
Stranded Conductor 		2×0.12 7/0.15 0.45 0.5 3.0 3.4 158.0 0.018 1500 500
2×0.2 12/0.15 0.60 0.6 3.6 4.2 92.3 0.017
2×0.3 16/0.15 0.69 0.6 3.8 4.4 69.2 0.016
2×0.4 23/0.15 0.83 0.6 4.2 4.8 48.2 0.014 300
