227IEC53（RVV）Normal PVC Jacketed Flexible Cords

227 IEC 53 (RVV)

普通聚氯乙烯護套軟線

Normal PVC Jacketed Flexible Cords

標準 Standard: GB 5023.3--97

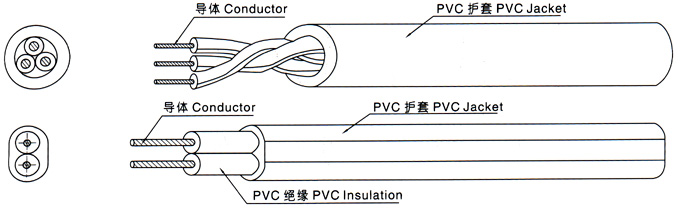

■ 構造 CONSTITUTION：

■ 產品說明

PRODUCT DESCRIPTION

●	Rated voltage: 300/500V，Rated temperature:70℃
●	Stranded, tinned bare copper conductor, 0.75-2.5mm²
●	PVC insulation
●	PVC jacket
●	Passes GB 18380.1vertical flame test

■ 應用

適用于一般電子、電器設備電源連線

APPLICATION

For general purpose power supply wiring of electronic and electrical equipment

227 IEC 53 (RVV) 70℃ 300/500V
導體類型 Conductor Type	導體 Conductor			芯數 Cores	絕緣 Insulation		護套 Jacket			20℃最大異體電阻 Max Resis- tance at 20℃	70℃最小絕緣電阻 Min Insulation Resis- tance at 70℃	耐電壓 Dielec- tric Strength AC 5 min	標準長度 Standard Length
	標準截面 Nom. Area	線數/ 線徑	直徑Dia		標稱厚度 Nom. Thick	標稱外徑 Nom. Dia.	標稱厚度 Nom. Thick.	標稱外徑 Nom. Dia.	最大外徑 Max. Dia
	No./mm	mm	No.	mm		mm	mm	mm	mm	Ω/Km	MΩ.Km	V	(M)
絞合導體 Stranded Conductor	0.75	24/0.20 42/0.15	2	0.6		2.33	0.8	6.3	0.8	26.0	0.011	2000	200
								4.0×6.3	5.2×7.6
					3			6.7	8.0
					4			7.3	8.6
					5		0.9	8.1	9.6				100
	1.0	32/0.20	2	0.6		2.50	0.8	6.6	8.0	19.5	0.010	2000	200
								4.1×6.6	5.3×8.0
					3			7.0	8.4
					4		0.9	7.9	9.4				150
					5			8.6	10.0				100
	1.5	48/0.20	2	0.7		3.00	0.8	7.6	9.0	13.3	0.010	2000	200
					3		0.9	8.3	9.8				150
					4		1.0	9.3	11.0				100
					5		1.1	10.4	12.0
	25	77/0.20	2	0.8		3.63	1.0	9.3	11.0	7.98	0.009	2000	100
					3			9.9	12.0
					4		1.1	11.0	13.0
					5		1.2	12.3	14.0
