227IEC52（RVV） Light-duty PVC Jacketed Flexible Cords

227 IEC 52 (RVV)

輕型聚氯乙烯護套軟線

Light-duty PVC Jacketed Flexible Cords

標準 Standard: GB 5023.3--97

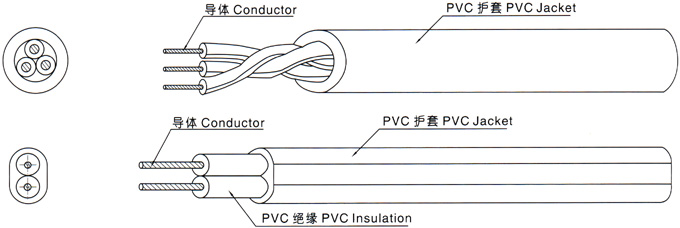

■ 構造 CONSTITUTION：

■ 產品說明

PRODUCT DESCRIPTION

●	Rated voltage: 300/300V，Rated temperature:70℃
●	Stranded, tinned or bare copper conductor, 0.5-0.75mm²
●	PVC insulation
●	PVC jacket
●	Passes GB 18380.1 vertical flame test

■ 應用

適用于一般電子、電器設備電源連線

APPLICATION

For general purpose power supply wiring of electronic and electrical equipment

227 IEC 52(RVV)70℃ 300/300V
導體類型 Conductor Type	導體 Conductor			芯數 Cores	絕緣 Insulation		護套 Jacket			20℃最大異體電阻Max Resis- tance at 20℃	70℃最小絕緣電阻Max Insulation Resis- tance at 70℃	耐電壓 Dielec- tric Strength AC 5 min	標準長度 Standard Length
	標準截面 Nom.Area	線數/ 線徑	直徑 Dia		標稱厚度 Nom. Thick	標稱外徑 Nom. Dia.	標稱厚度 Nom. Thick.	標稱外徑 Nom. Dia.	最大外徑 Max. Dia
	mm²	No./mm	mm	No.	mm	mm	mm	mm	mm	Ω/Km	MΩ.Km	V	M
絞合導體 Stranded Conductor	0.5	16/0.20 28/0.15	0.92	2	0.5	1.92	0.6	5.1	6.0	39.0	0.012	1500	200
				2				3.2×5.1	3.6×6.0
				2				5.4	6.2
				3
	0.75	24/0.20 42/0.15	2.13	2	0.5	2.13	0.6	5.5	6.4	26.0	0.010	1500	200
				2				3.4×5.5	3.9×6.4
				3				5.8	6.5
