Single Shielded Computer Cable |
Standard: UL 758,1581 CSA C22.2 NO.210.2
|
|
|

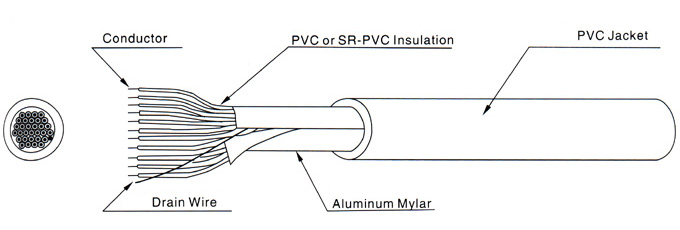

| ■ CONSTITUTION： |
|
 |
|
| PRODUCT DESCRIPTION |
| ● |
Rated voltage: 300V,Rated temperature:80℃ |
|
| ● |
Stranded,tinned or bare copper conductor |
|
| ● |
PVC or SR-PVC insulation |
|
| ● |
Stranded,tinned or bare copper drain wire |
|
| ● |
Aluminum mylar shield |
| ● |
PVC jacket |
|
| ● |
Passes UL V W-1SC & CSA FT1 vertical flame test |
|
|
|
|
|
|
|
| APPLICATION |
|
| Sound broadcast,audio instrumentation and computer cable for EIA RS-232 appliance |
|
|
|
|
|
UL 2464 80℃ 300V |
Conductor |
Cores |
Insulation |
Al.
Mylar
Shied
|
Jacket |
Max Resistance at 20℃ |
Min Insulation Resistance at 20℃ |
Dielectric Strength AC 1 min |
Standard Length |
| Spec |
|
Dia. |
Nom.
Thick. |
Nom.Dia. |
Nom.
Thick |
Nom.
Dia |
| AWG |
No./mm |
mm |
NO. |
mm |
mm |
mmXmm |
mm |
mm |
Ω/km |
MΩ Km |
V |
FT(M) |
| 28 |
7/0.127 |
0.38 |
3 |
0.23 |
0.88 |
A X B |
0.80 |
3.70 |
223.75 |
10 |
1500 |
656 (305) |
| 4 |
3.90 |
| 5 |
4.20 |
| 6 |
4.50 |
| 7 |
4.50 |
| 8 |
4.80 |
| 9 |
5.10 |
656(200) |
| 10 |
5.30 |
| 11 |
5.40 |
| 12 |
5.40 |
| 13 |
5.70 |
| 14 |
5.70 |
| 15 |
5.90 |
| 25 |
1.00 |
7.60 |
| 37 |
8.30 |
492(150) |
| 50 |
9.60 |
| 26 |
7/0.16 |
0.48 |
2 |
0.25 |
0.98 |
A X B |
0.80 |
3.70 |
139.33 |
10 |
1500 |
1000(305) |
3 |
3.90 |
| 4 |
4.20 |
| 5 |
4.50 |
| 6 |
4.80 |
| 7 |
4.80 |
| 8 |
5.10 |
656 (305) |
| 9 |
5.50 |
| 10 |
5.80 |
| 11 |
5.90 |
| 12 |
5.90 |
| 13 |
6.20 |
| 14 |
6.20 |
| 15 |
6.50 |
| 25 |
1.00 |
8.30 |
492 (150) |
| 37 |
9.20 |
| 50 |
10.60 |
| 24 |
11/0.16 |
0.16 |
2 |
0.23 |
1.11 |
A X B |
0.80 |
4.00 |
93.3 |
10 |
1500 |
1000(305) |
| 3 |
4.20 |
| 4 |
4.50 |
| 5 |
4.80 |
| 6 |
0.90 |
5.10 |
656 (200) |
| 7 |
5.10 |
| 8 |
5.14 |
| 9 |
6.00 |
| 10 |
6.40 |
| 11 |
6.60 |
| 12 |
6.60 |
| 13 |
6.80 |
| 14 |
6.80 |
| 15 |
7.20 |
| 25 |
1.00 |
8.90 |
492 (150) |
| 37 |
9.90 |
| 50 |
11.40 |
| 22 |
17/0.16 |
0.76 |
2 |
0.23 |
1.26 |
A X B |
0.90 |
4.40 |
55.0 |
10 |
1500 |
1000(305) |
| 3 |
4.60 |
| 4 |
4.80 |
656 (200) |
| 5 |
5.20 |
| 6 |
1.00 |
5.60 |
| 7 |
5.60 |
| 8 |
6.20 |
| 9 |
6.70 |
| 10 |
7.10 |
| 11 |
7.50 |
| 12 |
7.50 |
| 13 |
7.80 |
| 14 |
7.80 |
| 15 |
8.20 |
492 (150) |
| 25 |
1.10 |
10.40 |
| 37 |
11.50 |
| 50 |
13.30 |
| |
|
注：①AXB：厚度 X 寬度（mm） Notes: ①A X B：thickness X widt(mm)
②厚度：0.025、0.035(mm) ②thickness:0.025、0.035（mm）
③寬度：8、10、12、18、20……（mm） ③width:8、10、12、18、20…（mm） |
|
|
